Spartna SPR-221 Insulation Tester with True RMS Multimeter

spartnaSKU: SPR-221
filler

Price:
Sale priceAED. 950.00
Stock:
In stock

Description

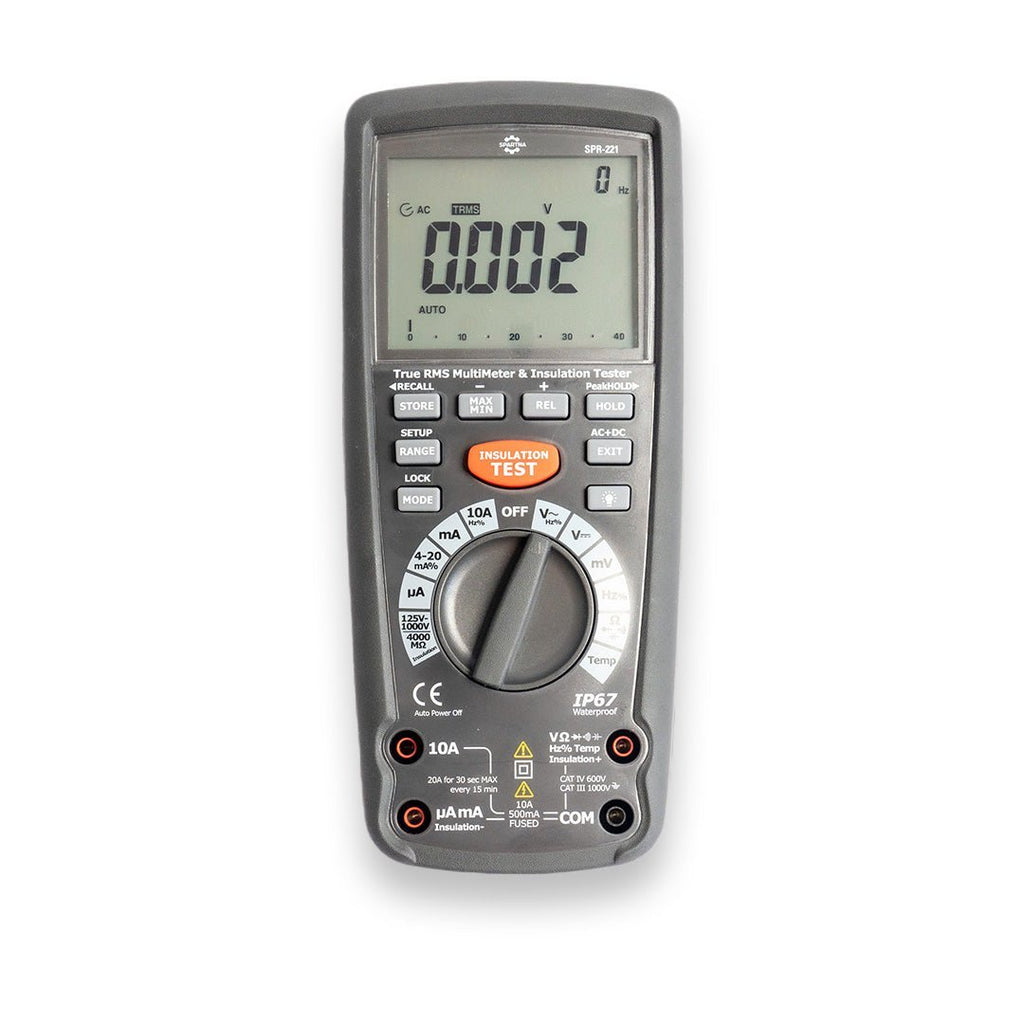

Spartna SPR-221 is Insulation Multimeter combines a digital insulation
tester with a full - featured, True RMS digital multimeter in a single,
compact and handheld unit, which provides maximum versatility for
both troubleshooting and preventative maintenance

  • Insulation test voltages 125V, 250V, 500V, 1000V.
  • Insulation test: 0.001MΩ to 4000MΩ.
  •  AC, AC+DC, DC measurements of voltage and current.
  •  1kHz bandwidth for AC voltage and AC current measurements.
  •  Auto discharge of capacitive voltage.
  •  Insulation test smoothing reading.
  •  40,000 Counts Large LCD.
  •  Min/Max function.
  •  K-type thermocouple.
  •  Rugged, utility hard case.
  •  Auto power off to save battery power.
  •  Large LCD display with backlight.
  •  CAT III 1000V, CAT IV 600V measurement category.
  •  Low battery indication.
  •  IP67 Waterproof.

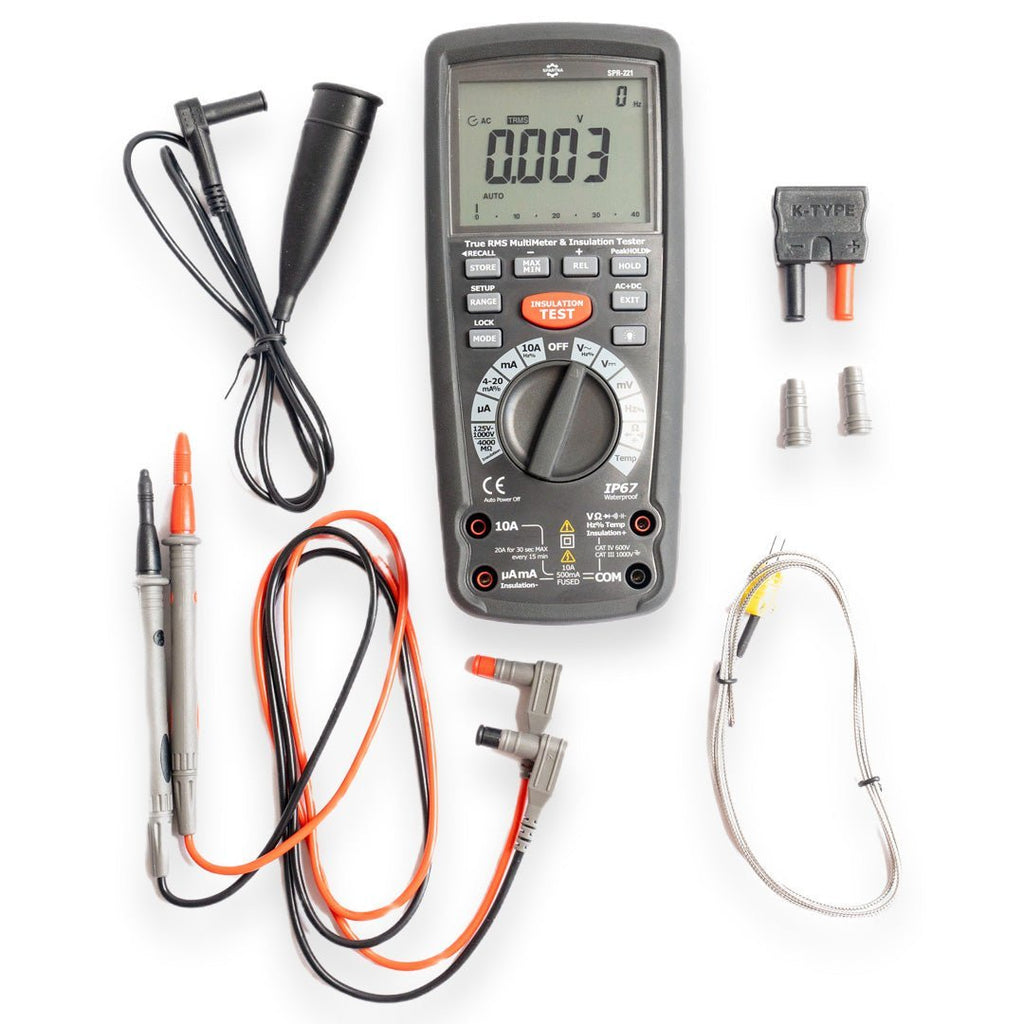

  •  Accessories: Test leads, 6x1.5V“AAA” batteries, Type K temp.
    probe and carrying case.
  • DC Voltage
         Max Range: 1000V
         Basic Accuracy: ±(0.06% reading + 4digits)
         Resolution: 0.1V
  • AC Voltage
         Max Range: 1000V
         Basic Accuracy: ±(1.0% reading + 30 digits)
         Resolution: 0.1V
  • DC Current
         Max Range: 10A
         Basic Accuracy: ±(1.0% reading + 3 digits)
         Resolution: 0.001A
  • AC Current
         Max Range: 10A
         Basic Accuracy: ±(1.0% reading + 30 digits)
         Resolution: 0.001A
  • Resistance
         Max Range: 40MΩ
         Basic Accuracy: ±(0.3% reading + 4 digits)
         Resolution: 0.0001MΩ
  • Capacitance
         Max Range: 40mF
         Basic Accuracy: ±(3.5% reading + 10digits)
         Resolution: 0.001mF
  • Duty Cycle
         Max Range: 0.1 to 99.90%
         Basic Accuracy: ±(1.2% reading + 2 digits)
         Resolution: 0.01%
  • Temperature
         Max Range: -50 to 1200°C (-58 to 2192°F)
         Basic Accuracy: ±(1.0% reading+2.5°C/4.5°F)
         Resolution: 0.1°C (0.1°F)
  • Frequency
         Max Range: 40MHz
         Basic Accuracy: ±(0.1% reading + 1 digits)
         Resolution: 0.01MHz
  • Power :  6 x 1.5V“AAA” battery
  • Dimensions : 220mm x 96.5mm x 60.5mm
  • Weight : 631g
