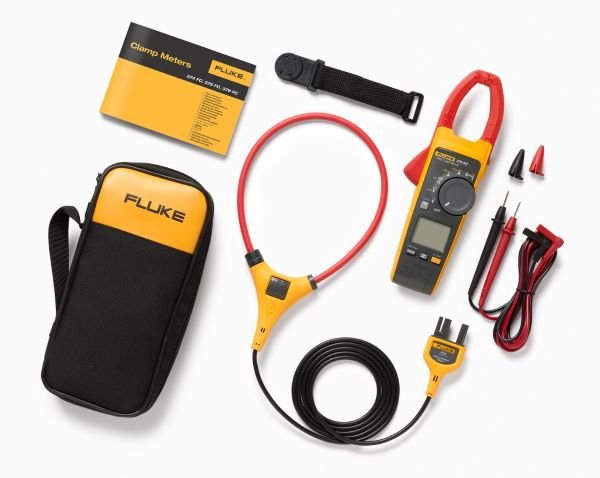

The Fluke 376 FC True-rms Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. The 376 is part of the Fluke Connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.
The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.
Measure:
- Voltage to 1000 V AC or DC
- Resistance to 60 kΩ with continuity detection
- Min, max, average, and inrush recording to capture variations automatically
- 500 mV DC measurement range to interface with other accessories
- 1000 μF capacitance measurement
The 376 FC clamp carries a CAT III 1000 V, CAT IV 600 V safety rating, designed to offer you the highest possible protection in a test tool.

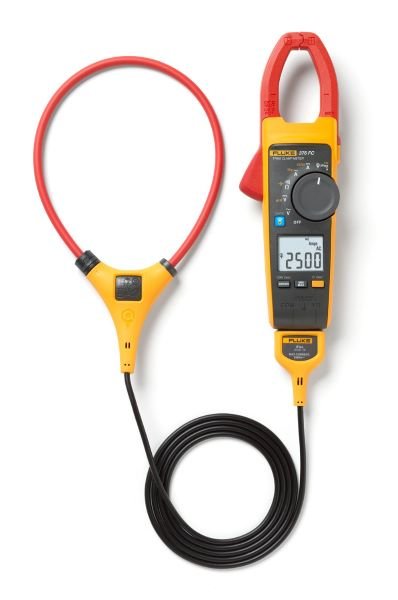

The included iFlex flexible current probe provides easier access to large conductors in tight spaces. The flexible probe:
- Expands the measurement range to 2500 A AC
- Allows frequency measurement to 500 Hz with body jaw and iFlex
AC Current via Jaw
- Range: 999.9A
- Resolution: 0.1A
- Accuracy: 2% ±5 digits (10 Hz to 100 Hz)
2.5% ±5 digits (100-500 Hz)
- Crest Factor (50 Hz/60 Hz): 3 @ 500 A
2.5 @ 600 A
Add 2% for C.F. >2
AC Current via Flexible Current Probe
- Range: 2500 A
- Resolution: 0.1A (≤ 600 A)
1 A (≤ 2500 A)
- Accuracy: 3% ±5 digits (5 – 500 Hz)
- Crest Factor (50 Hz/60 Hz): 3 @ 1100 A
2.5 @ 1400 A
1.42 at 2500
Add 2% for C.F. >2
DC Current
- Range: 999.9A
- Resolution: 0.1A
- Accuracy: 2% ±5 digits
AC Voltage
- Range: 1000V
- Resolution: 0.1 V (≤600.0 V)
1 V (≤1000 V)
- Accuracy: 1% ±5 digits (20 Hz to 500 Hz)
DC Voltage
- Range: 1000V
- Resolution: 0.1 V (≤600.0 V)
1 V (≤1000 V)
- Accuracy: 1% ±5 digits
mV dc
- Range: 500.0 mV
- Resolution: 0.1 mV
- Accuracy: 1% ±5 digits
Frequency via Jaw
- Range: 5.0 Hz to 500.0 Hz
- Resolution: 0.1 Hz
- Accuracy: 0.5% ±5 digits
- Trigger level: 5 Hz to 10 Hz, ≥10A
10 Hz to 100 Hz, ≥5A
100 Hz to 500 Hz, ≥10A
Frequency via Flexible Current Probe
- Range: 5.0 Hz to 500.0 Hz
- Resolution: 0.1 Hz
- Accuracy: 0.5% ±5 digits
- Trigger level: 5 Hz to 20 Hz, ≥25A
20 Hz to 100 Hz, ≥20A
100 Hz to 500 Hz, ≥25A
Resistance
- Range: 60 kΩ
- Resolution: 0.1 Ω (≤600 Ω)
1 Ω (≤6000 Ω)
10 Ω (≤60 kΩ)
- Accuracy: 1% ±5 digits
Capacitance
- Range: 1000 μF
- Resolution: 0.1 μF (≤ 100 μF)
1 μ F (≤ 1000 μF)
- Accuracy: 1% ±4 digits
Mechanical Specifications
- Maximum voltage between any terminal and earth ground: 1000 V
- Batteries: 2 AA, NEDA 15A, IEC LR6
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +60 °C
- Operating humidity - non-condensing (< 10°C): ≤90% RH (at 10 °C to 30 °C)
≤75% RH (at 30 °C to 40 °C)
≤45% RH (at 40 °C to 50 °C)
- Size (L x W x H): 249 x 85 x 45 mm
- Weight: 395 g
- Jaw opening: 34 mm
- Flexible current probe diameter: 7.5 mm
- Flexible current probe cable length (head to electronics connector): 1.8m
