Spartna SPR-231 Phase Rotation Indicator

spartnaSKU: SPR-231
filler

Price:
Sale priceAED. 350.00
Stock:
In stock

Description

SPARTNA SPR-231 Phase Rotation Indicator is a handheld instrument
designed to detect the rotary field of three-phase systems.

  • Determine rotary field direction.
  • Graphical multiline LCD indicates phase orientation (clockwise or
     counter-clockwise) and whether each of the three phases is live.
  • Durable housing is double molded.
  • Easy to open alligator clips with wide jaws.
  • No battery required.

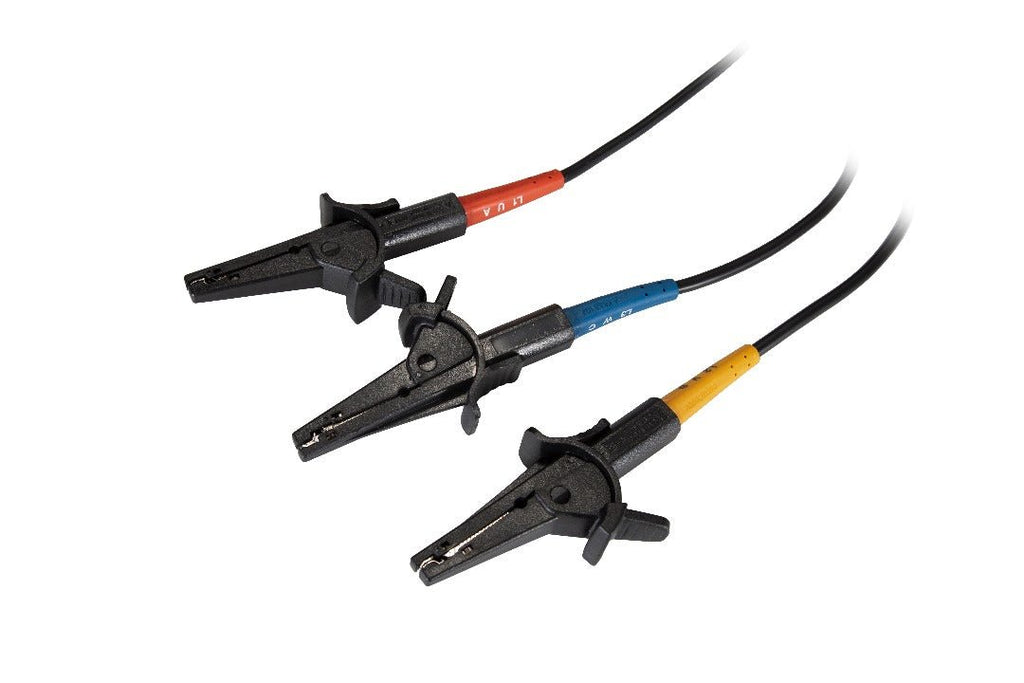

  • Accessories: cable, three large color coded alligator clips & soft case
  • Nominal Voltage : 40V to 850V AC
  • Frequency Range : 15 to 400Hz
  • Current Pickup :1mA
  • Nominal Test Current (Per Phase) : 1mA
  • Maximum Operating Voltage  : 850V AC
  • Operating Temperature : 0ºC~ 40ºC

  • Electrical Safety :    IEC61010/EN61010;
                                   IEC61557-7/EN61557-7
  • Protection Level : CATIII 1000V and CATIV 600V

  • Type of Protection : IP40
  • Dimensions : 135mm x 75mm x 31mm
  • Weight : 135g
